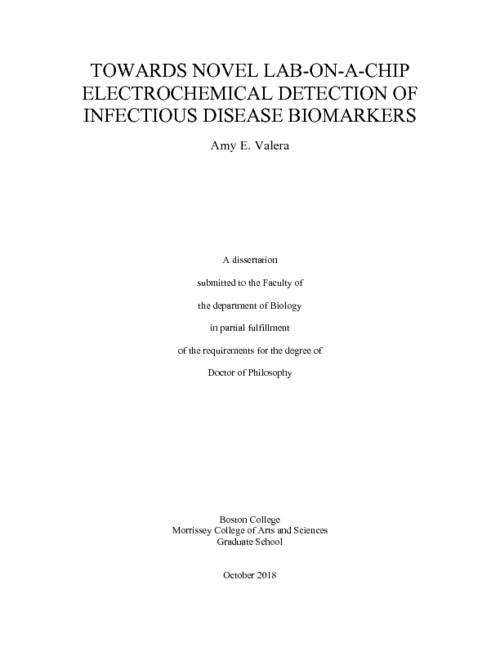

Towards novel lab-on-a-chip electrochemical detection of infectious disease biomarkers

Abstract

Rapid diagnosis of infectious disease at the site of the patient is critical for preventing the escalation of an outbreak into an epidemic. This is particularly true for cholera, a disease known to spread swiftly within resource-limited populations. A device suited to point-of- care (POC) diagnosis of cholera must not only demonstrate laboratory levels of sensitivity and specificity, but it must do so in a highly portable, low-cost manner, with a simplistic readout. Here, we report novel proof-of-concept lab-on-a-chip (LOC) electrochemical immunosensors for the detection of cholera toxin subunit B (CTX), based on two nanostructured architectures: the gold dendritic array, and the extended core coax (ECC). The dendritic array has an ~18x greater surface area than a planar gold counterpart, per electrochemical measurements, allowing for a higher level of diagnostic sensitivity. An electrochemical enzyme-linked immunosorbant assay (ELISA) for CTX performed via differential pulse voltammetry (DPV) on the dendritic sensor demonstrated a limit-of detection of 1 ng/mL, per a signal-to-noise ratio of 2.6, which was more sensitive than a simple planar gold electrode (100 ng/mL). This sensitivity also matches a currently available diagnostic standard, the optical ELISA, but on a miniaturized platform with simple electrical readout. The ECC was optimized and explored, undergoing several changes in design to facilitate sensitive LOC electrochemical detection. The ECC matched the off-chip sensitivity towards CTX demonstrated by a previous non-extended core coaxial iteration, which was comparable to a standard optical ELISA. In contrast to the previous coaxial architecture, the ECC is amenable to functionalization of the gold core, allowing for LOC detection. ECCs were functionalized using a thiolated protein G, and CTX was detected via an electrochemical ELISA. While this work is ongoing, the ECC shows promise as a platform for LOC electrochemical ELISA. The ability to potentially meet POC demands makes biofunctionalized gold dendrites and ECCs promising architectures for further development as LOC sensors for the detection of infectious disease biomarkers.
